Pinboard

Collections that are created can be saved within the current pack and dataset combination for future use

Once created, pinboard collections will appear in property selection panels for Filtering, Paging and Colors

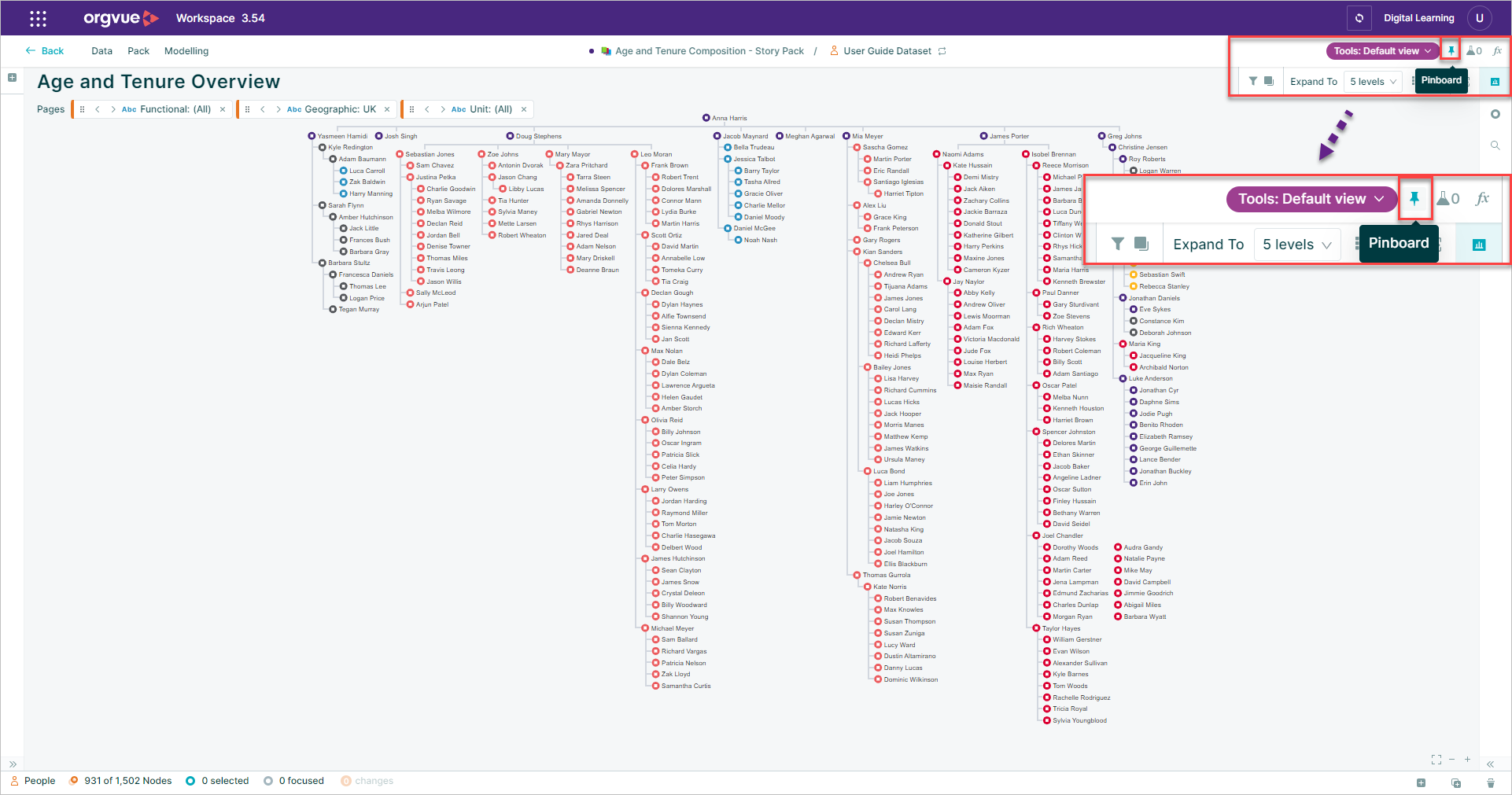

To open the Pinboard select the Pinboard Button

info

When modelling within a Draft it is not possible save new nodes created within the Draft to a Pinboard when you save the pack

Create Collection

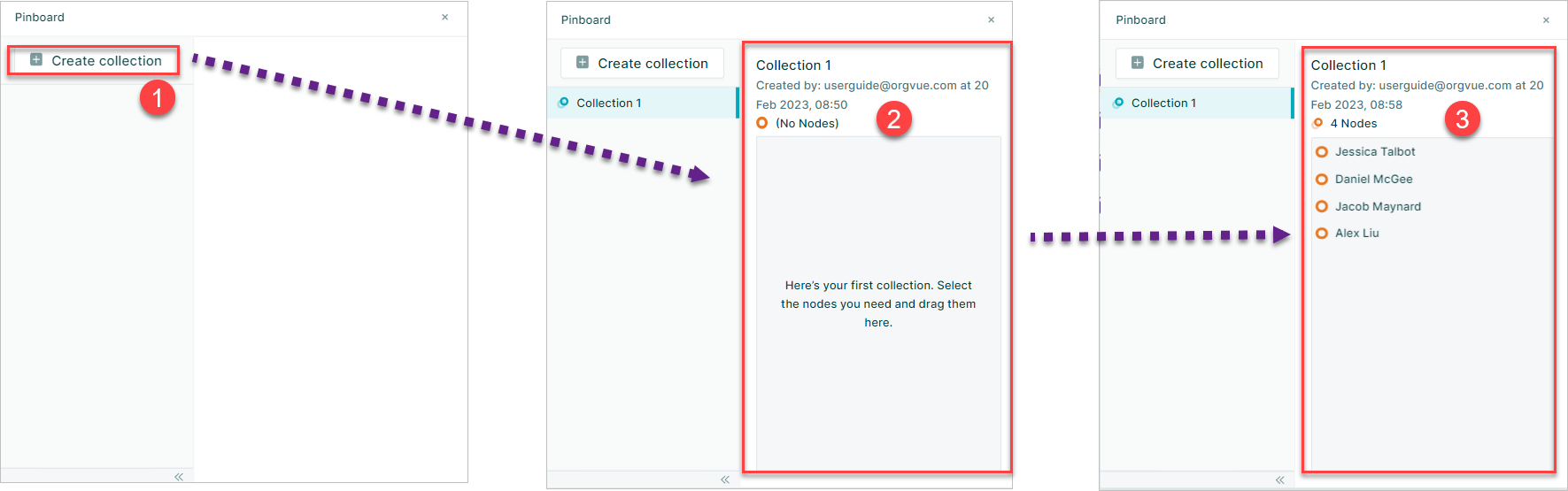

To create a collection:

1. Select the Create Collection button
2. This will create an empty collection ready to add nodes by dragging them onto pinboard
3. Nodes added will then be displayed

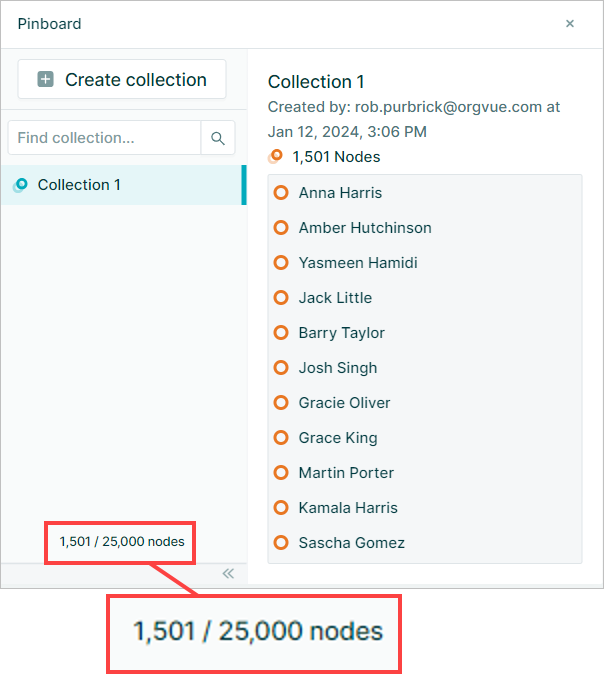

The Pinboard has a limit of 25000 nodes across all collections

Edit Collection

Nodes may be added to an existing collection by dragging them onto the pinboard

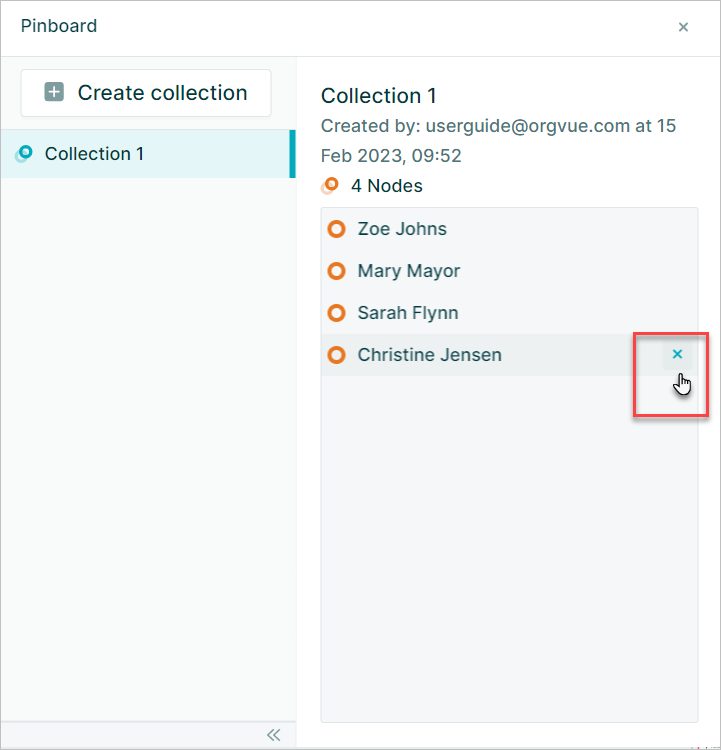

To remove a node from a collection use the X

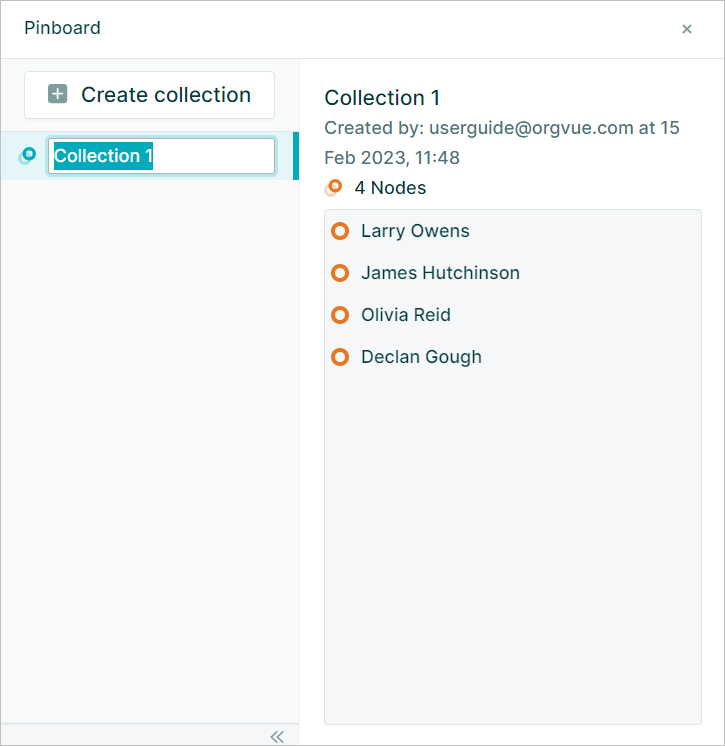

Collection names will initially be set as Collection 1, Collection 2 but may be changed by double-clicking the collection name to edit it

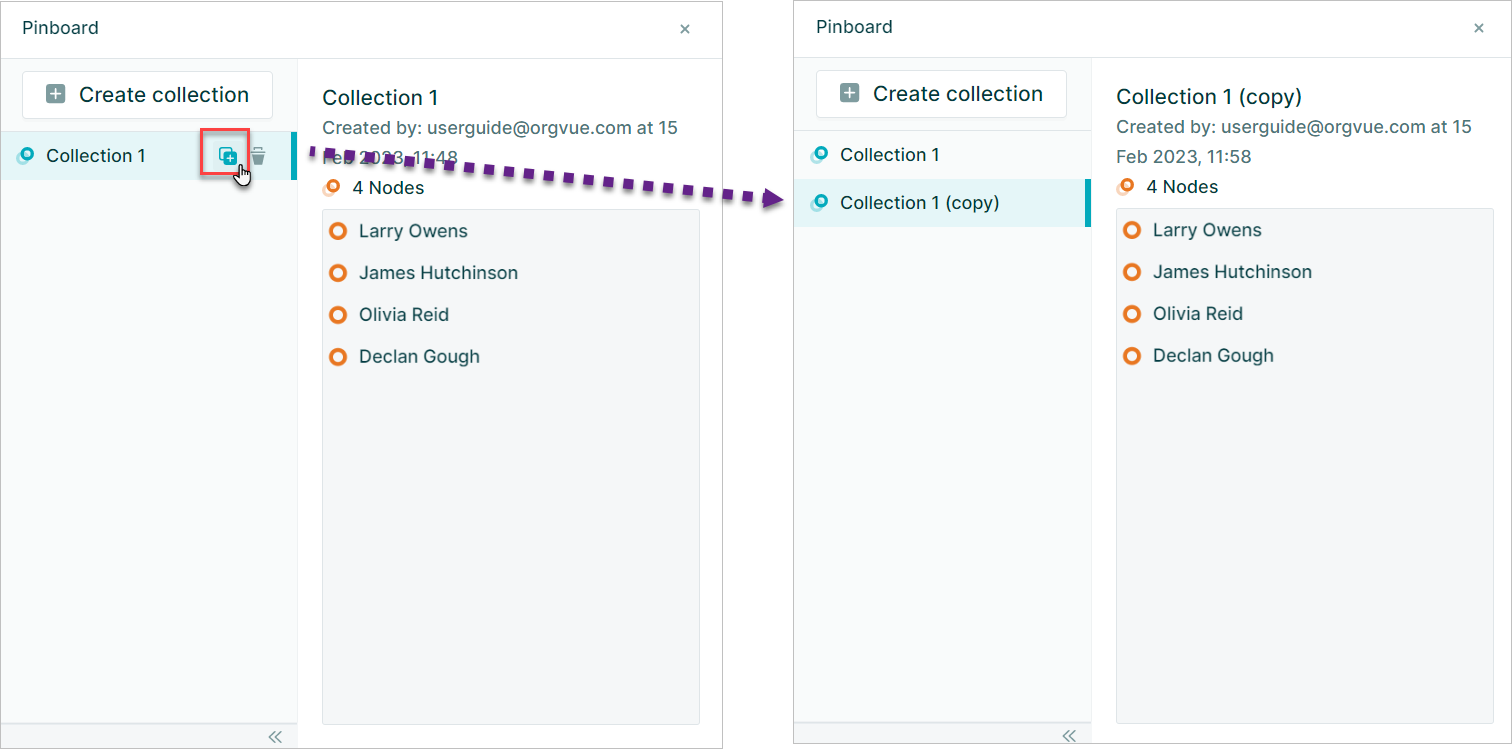

Duplicate Collection

An existing collection can be duplicated using the Duplicate button

The collection will be duplicated with the name of the source collection and the suffix (copy)

Delete Collection

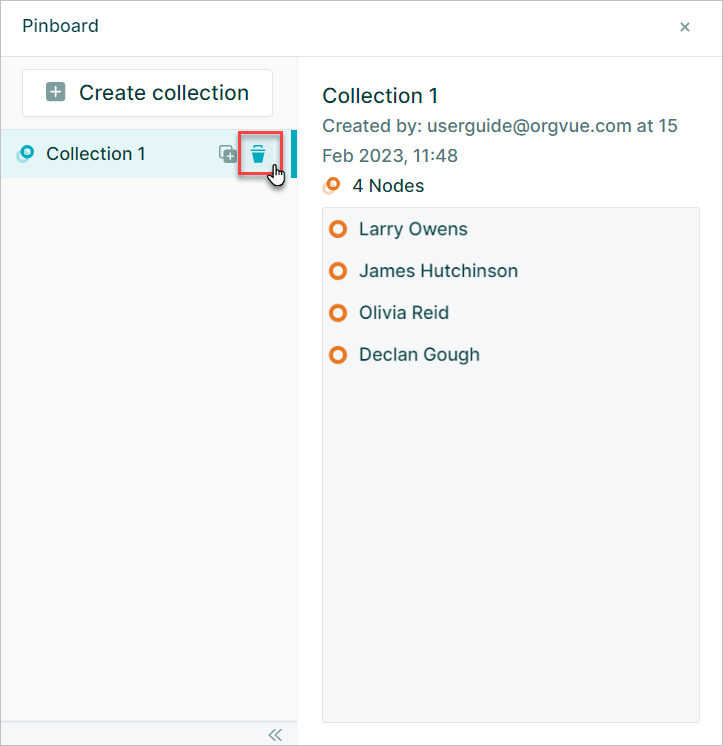

Any collection that is no longer required may be deleted using the Delete button

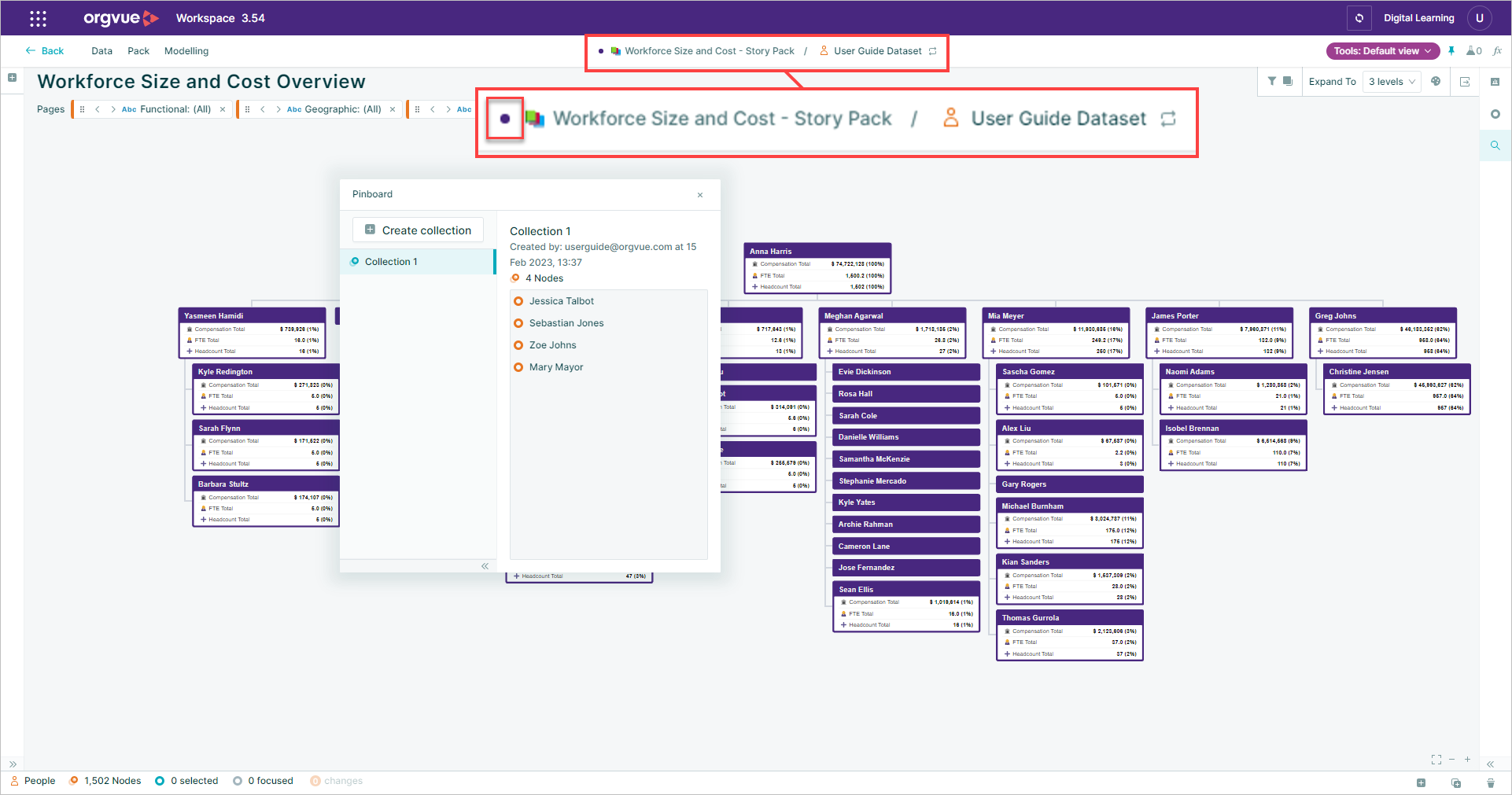

Save Collection

Collections are saved on the Pinboard within the Pack and Dataset combinations they are created in.

The creation of a collection on the pinboard will result in the Unsaved Changes Indicator being shown for the current pack in the Header Bar

Saving the pack will also save the collections on the pinboard

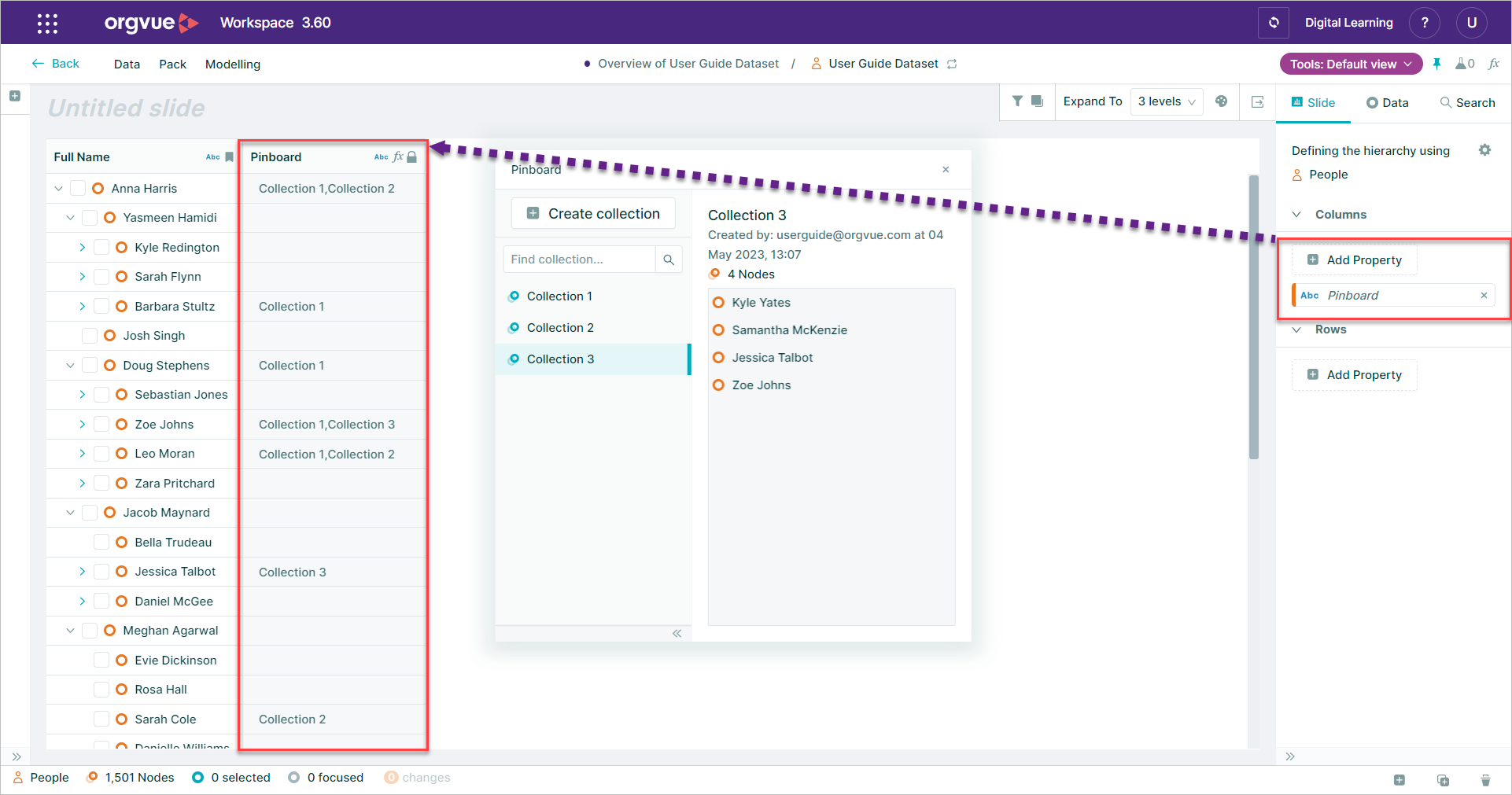

Pinboard Property

Pinboard will be available as a selectable property in all property panels

Adding the property to a slide will show which collections each node has been added to

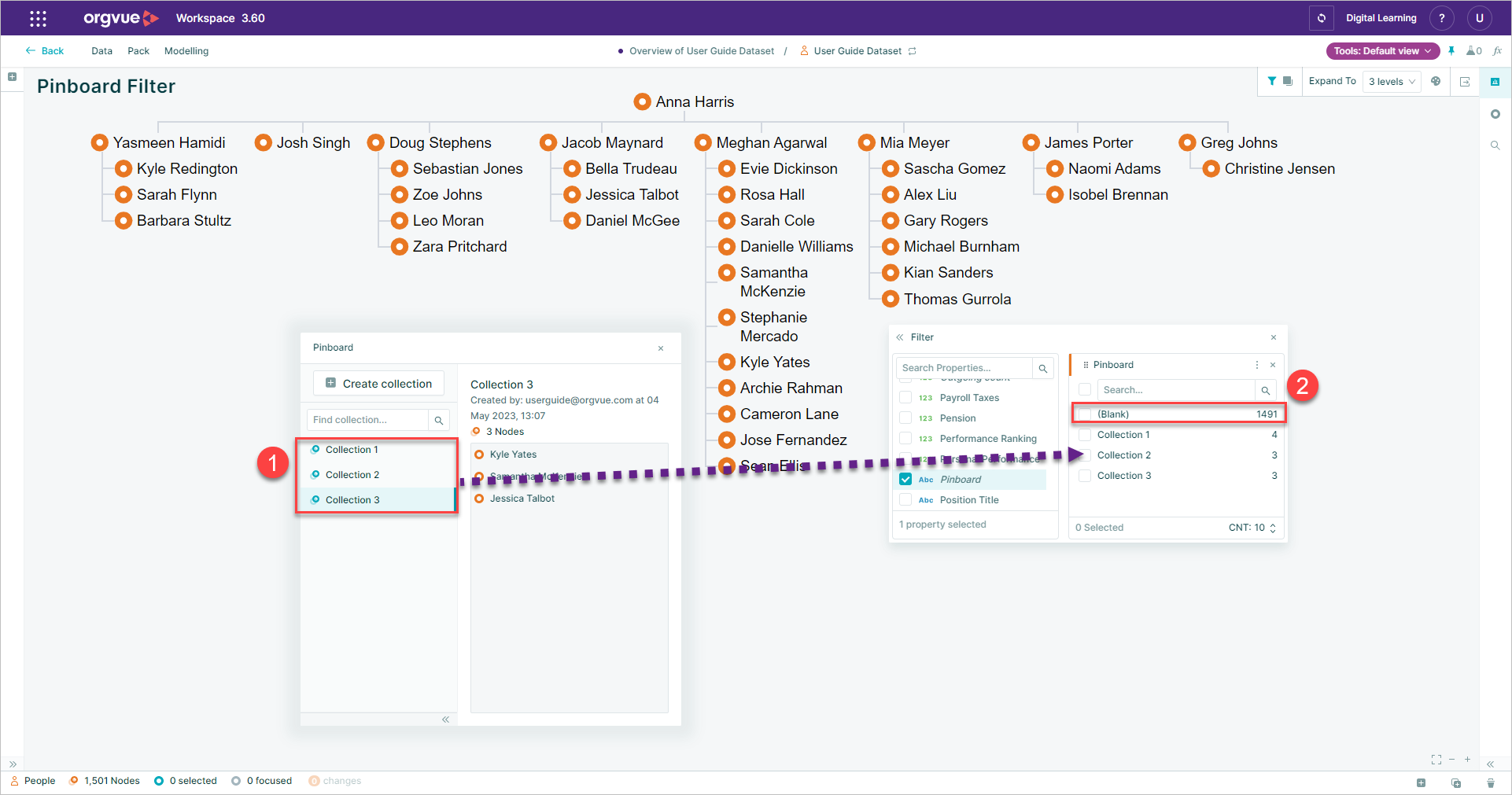

Filter by Pinboard

Once a collection has been created on the Pinboard it may be selected in the filter property panel to filter the data visible on the current slide

1. Each collection on the Pinboard will appear as a selectable property bucket for the Pinboard property on the filter panel
2. The (Blank) option will also be available as a property bucket to enable selection of nodes that have not been added to any of the Pinboard collections

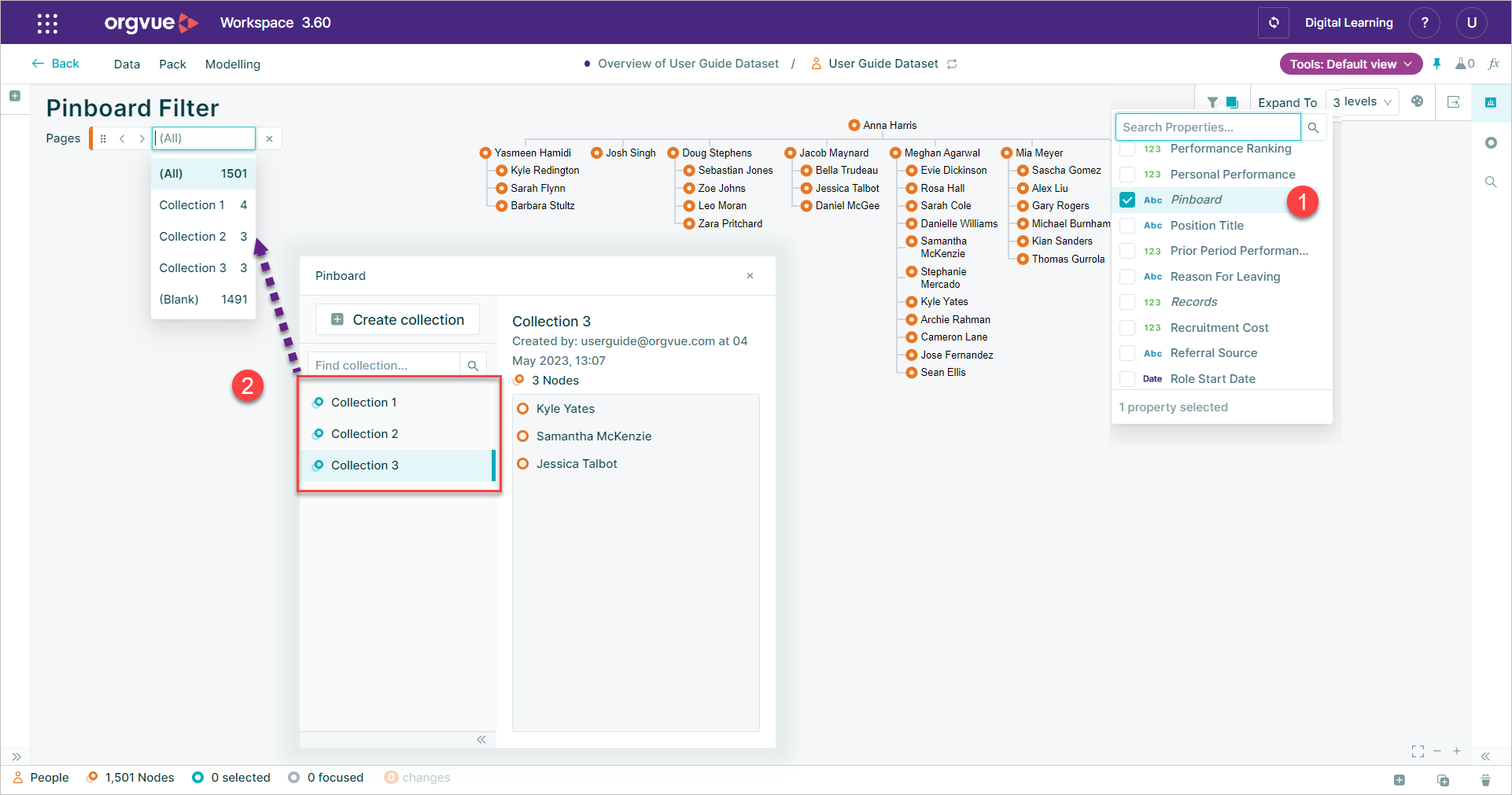

Paging by Pinboard

Created Pinboard collections may be used as Paging properties by:

1. Selecting Pinboard as the Paging property will enable the slide to be paged by each node collection
2. Each collection will be selectable as a property in the paging dropdown

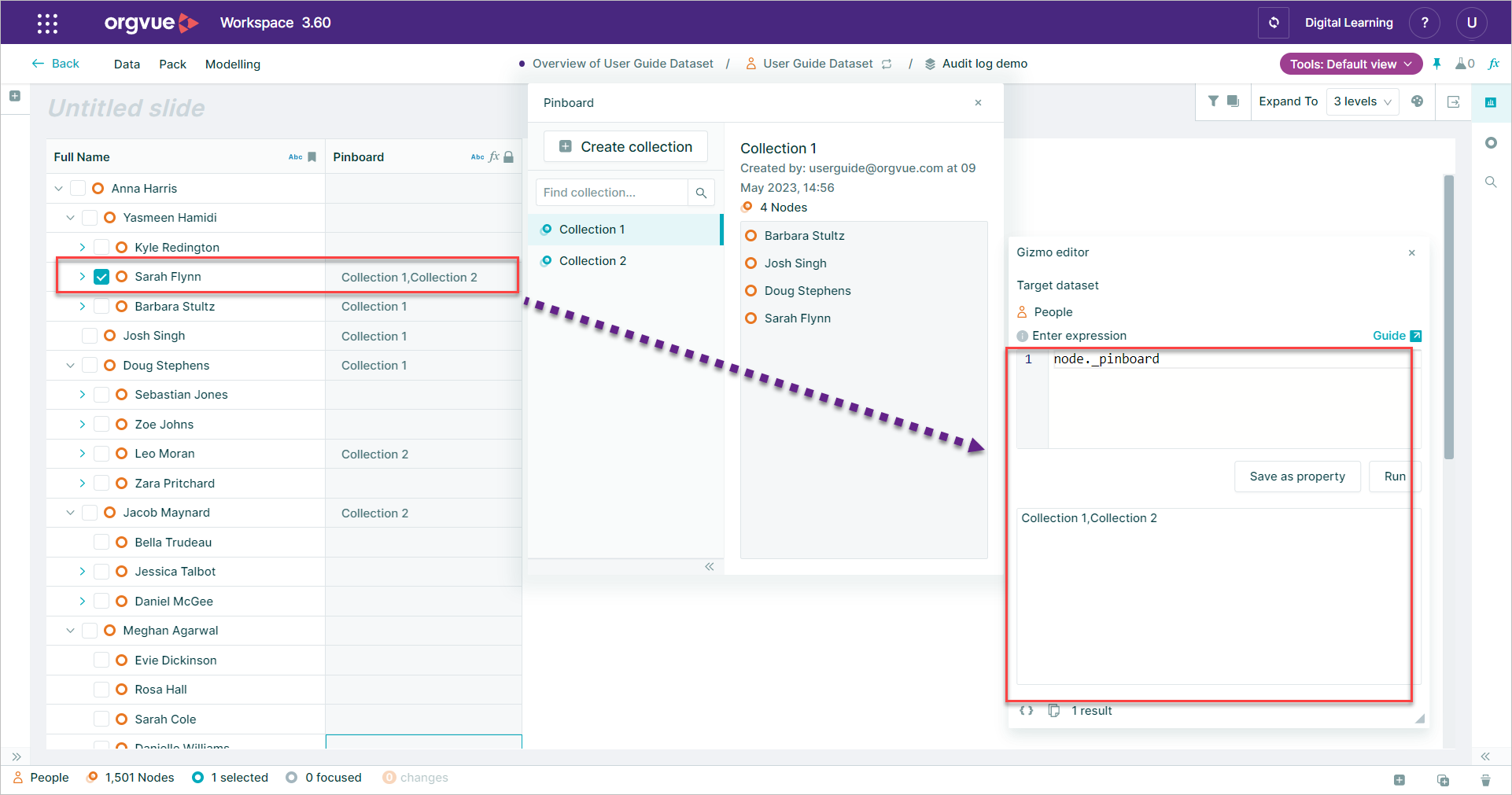

Pinboard in Gizmo Expressions

Created Pinboard collections are accessible via Gizmo expressions using the Generated Property _Pinboard

Add to Pinboard

Right-clicking on property buckets on either the filter panel, color legend or chart segments will provide the option to Add to Pinboard with a sub menu to Create collection or select an existing collection if present
